TOTOMO 1/4" OD Push Fit Angle Stop Adapter Valve - Compatible with 3/8" & 1/2" Under Sink Water Supply Lines for RO Water Purifier, Coffee Brewer, Ice Maker - Perfect for Kitchen, Bathroom & Appliance Installations

Product Description

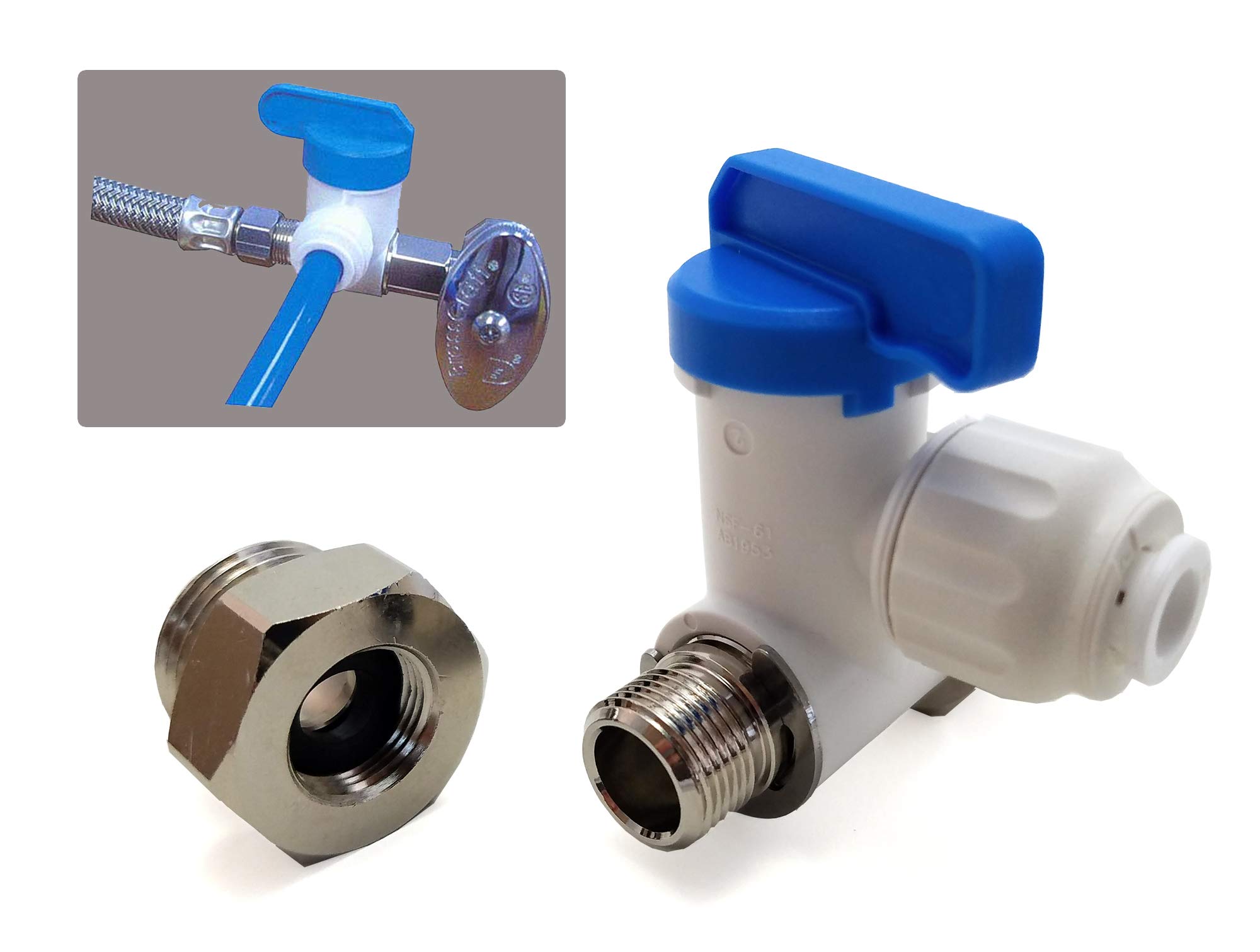

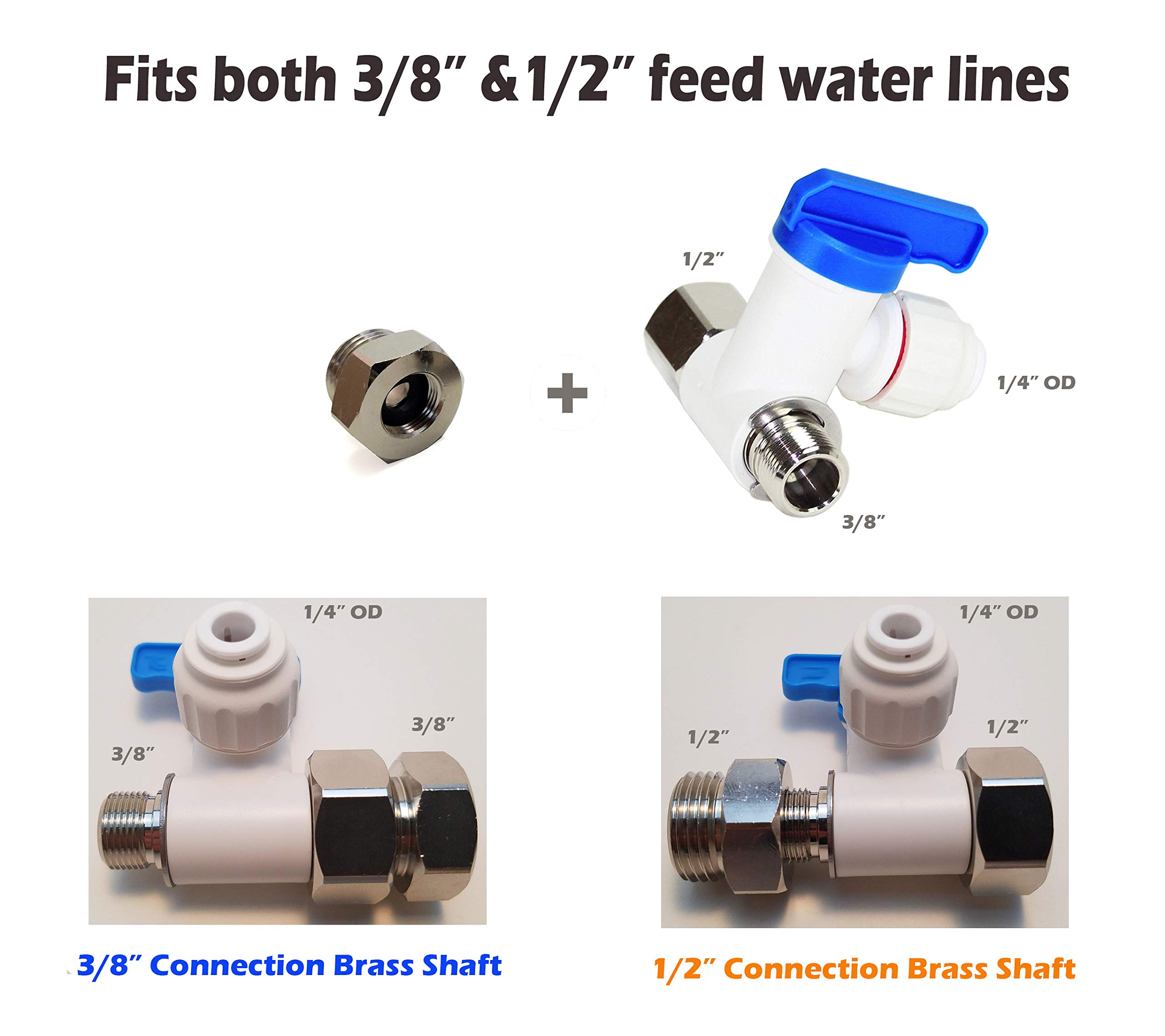

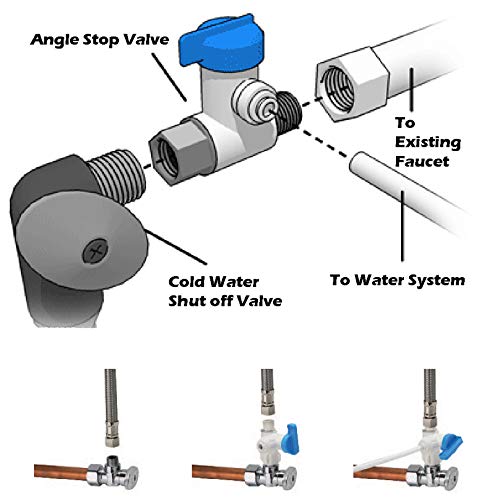

TOTOMO Angle Stop Adapter Valve connects between the supply valve and riser, to the main supply line, for applications in Reverse Osmosis, Filtration Systems, Automatic Coffee Brewers, Ice-makers, and many more. The included Conversion Adapter (busing) can be threaded onto either side of the valve to make the configuration of 3/8 inch x 3/8 inch comp or 1/2 inch x 1/2 inch NPS. TOTOMO Angle Stop Adapter Valves are reusable push-fit plumbing system which combines both push-fit and twist locking technology to offer a secure, peace of mind leak-free joint. INSTALLATION Shut off water supply at brass/chrome supply valve. Disconnect riser from brass/chrome supply valve.Ensure that the sealing gasket is fully seated into the Angle Stop Valve female thread. Install Angle Stop Adapter Valve on supply valve.Connect the riser to the Angle Stop Adapter Valve.Fully insert tubing into the push fit side of the valve and twist the screw cap until colored ring is no longer visible. Open valves and check for leaks. It fits on both 3/8" and 1/2" water supply lines which are the standard under sink water supply line sizes in US. Reducing Brass Shaft & Conversion Adapter It comes with a 3/8" to 1/2" reducing stop valve adapter and a conversion adapter. Depending on your need you can install the conversion adapter on one of the sides and use it on 3/8" or 1/2" water supply line. You can also use it as reducing valve without using the conversion valve. 3/8" Connection Brass Shaft Conversion adapter is installed on the right to make it 3/8" valve. Use this configuration to install the adapter on a stop valve side. 1/2" Connection Brass Shaft Conversion adapter is installed on the left to make it 1/2" valve. Use this configuration to install the adapter on a faucet side. 1/4"OD and 3/8"OD Tubing Size Comparison with a penny. We offer both 1/4"OD and 3/8"OD tubing Stop Valve Adapter Valves. Please check your water tube size first. If you are not sure of your tube size, please check the image on the left and use a penny to compare. TOTOMO Angle Stop Adapters are manufactured to ISO 9001 TUV standard and have been tested and approved in accordance with ASSE 1061, IGC 157,IGC 188, ASME A112.18.1, CSA B125.1, cUPC, NSF/ANSI 14, NSF/ANSI 42,NSF/ ANSI 61 NSF/ANSI 372,WRAS and WQ.
