**Heavy Duty Hydraulic Air Riveter Tool - Professional Steel & Aluminum Rivet Puller for Metalworking, Automotive, and Construction (Japanese-Style Air Rivet Gun)** *Perfect for auto body repair, HVAC installations, metal fabrication, and industrial assembly projects.*

Product Description

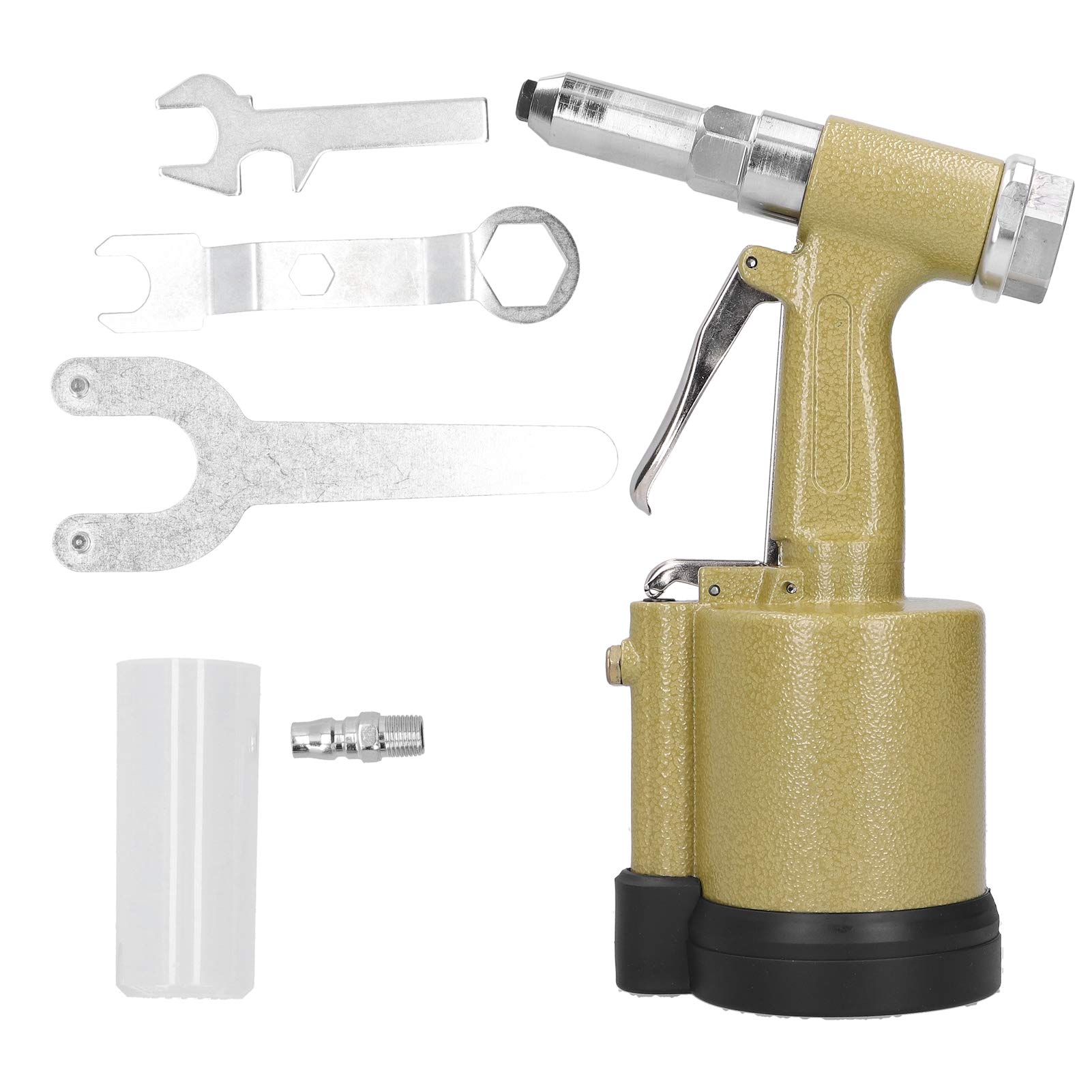

Specification:Item Type: Hydraulic Pneumatic Rivet Model : KP-703Applicable Rivets: Steel/aluminum rivetsAluminum/Iron Nail Capacity: Approx. 3.2mm / 0.1in, 4.0mm / 0.2in, 4.8mm / 0.2in, 6.4mm / 0.3inStainless Steel Nail Capacity: Approx. 3.2mm / 0.1in, 4.0mm / 0.2in, 4.8mm / 0.2inWorking Stroke: Approx. 20mm / 0.8inInlet Connector: G1/4inWorking Pressure: 0.5-0.7MPAHow to Use: Replace the Jaw Piece:1. Use a wrench to loosen the outer sleeve CCW2. Take out the outer casing3. Use a wrench to loosen and remove the front jaw sleeve4. Replace the three-claw piece, install the front claw cover and the outer tube in turn, completeActual Operation of Adding Hydraulic Oil:1. Disassemble its base2. Clamp the hex nut to pull out the piston3. Pour hydraulic oil into the small hole4. Install the piston and the base in turn to completePackage List:1 x Air Nozzle1 x Rivet 1 x Rivet Collect Bottle3 x Wrench1 x User ManualNote:The nozzle color is shipped randomly.
