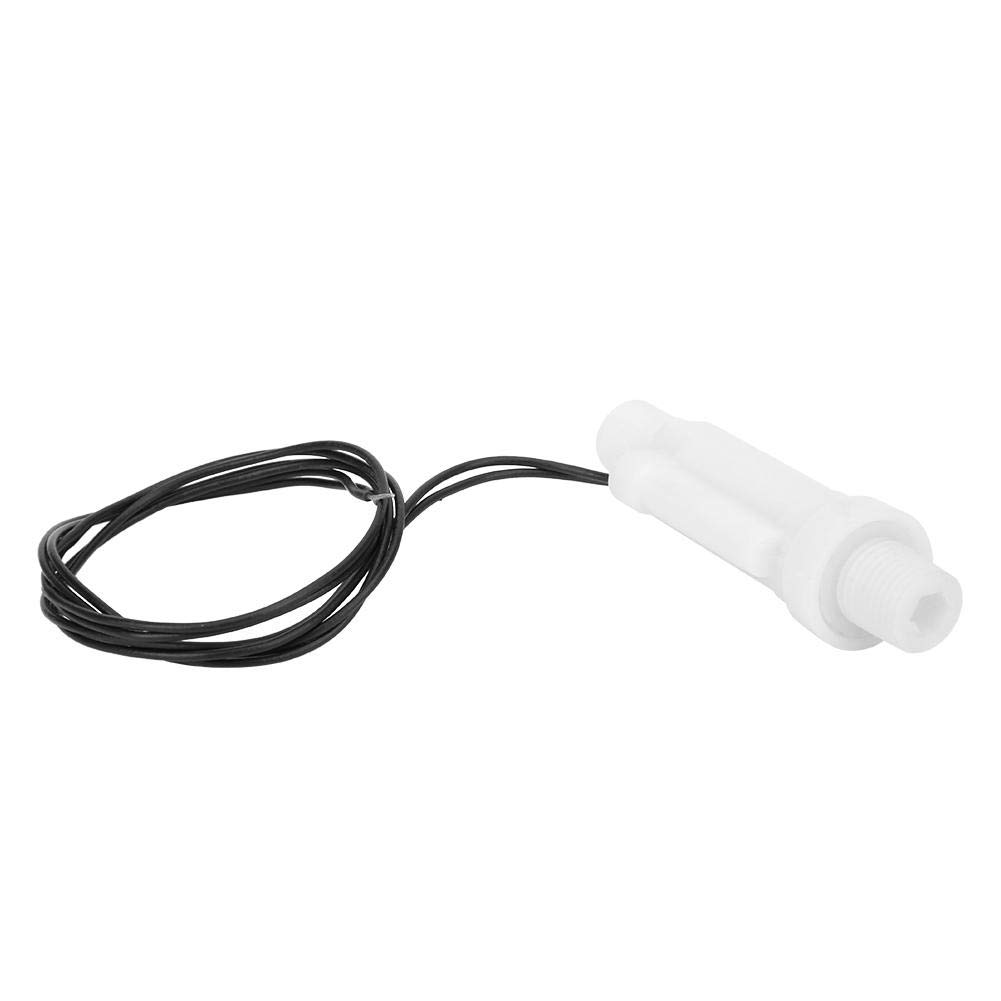

Oumefar Water Flow Sensor Switch, DC 0-110V, G1/4 Inch Male Thread Plastic Sensor for Water Purifier Systems - Perfect for Home Filtration, RO Systems & Industrial Water Monitoring

Product Description

Feature:1. Output the state of the liquid flowing or stationary in the pipeline as an electric switch signal2. Depending on the switch control method, it can be used for two ways: water outlet power on or water outlet power off3. Can be used for water flow control of fast electric water heaters4. Suitable for prompting replace the filter core of self-priming water purifiers and water purifiers in areas without tap water5. The connecting port is G14in male thread, easy to install and connectSpecification:Item Type: Water Flow Sensor Switch Model: fs-1/4-1Connecting Thread Size: Male thread G1/4inMaterial: PPWorking Voltage: DC0-110VWorking Current: 0.5-1AMaximum Withstand Voltage: ≤0.2MpaMaximum Temperature Resistance: 85℃Medium Specific Gravity: 0.7Working Principle: When there is water flowing in the water flow switch, the magnetic core in the water flow switch is pushed by the water flow to cause displacement, and the magnetic core displacement drives the magnetic source to generate a magnetic control action so that the water flow switch outputs a on signal. This signal is input to the device control system, and the control system is used to realize the control function. When the water flow is less than the starting flow, the water flow switch outputs an off signal. The control system produces the opposite control effectPackage List:1 x Water Flow Sensor SwitchNote:This product is intelligently installed vertically. Refer to the picture for the installation direction
