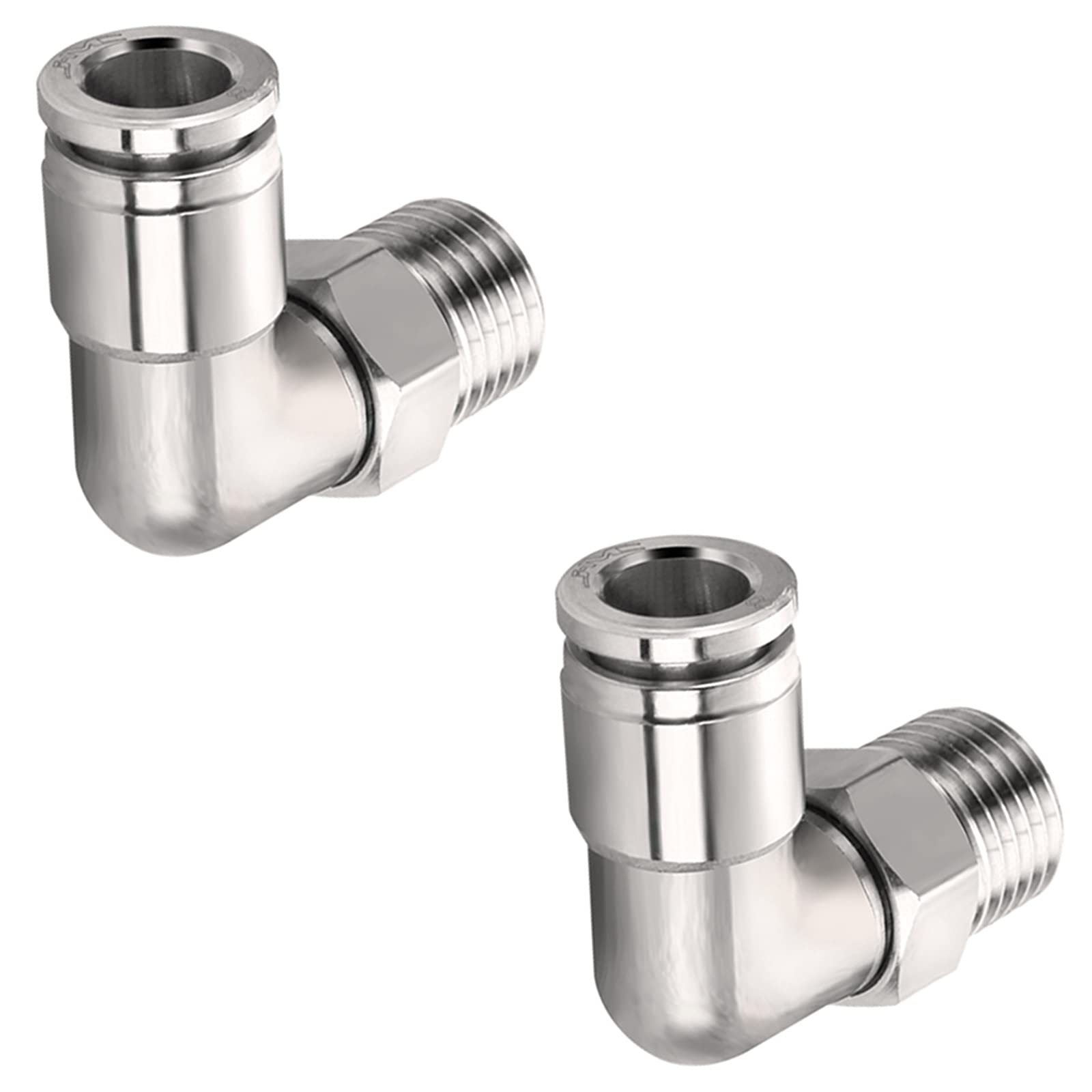

2Packs 3/8" NPT Male Elbow Fitting - 304 Stainless Steel Pneumatic Push to Connect Air Fitting, 90 Degree Quick Connector for Air Compressor, Air Horn, Air Bag Systems - Perfect for DIY Automotive, Industrial & Pneumatic Tool Applications

Product Description

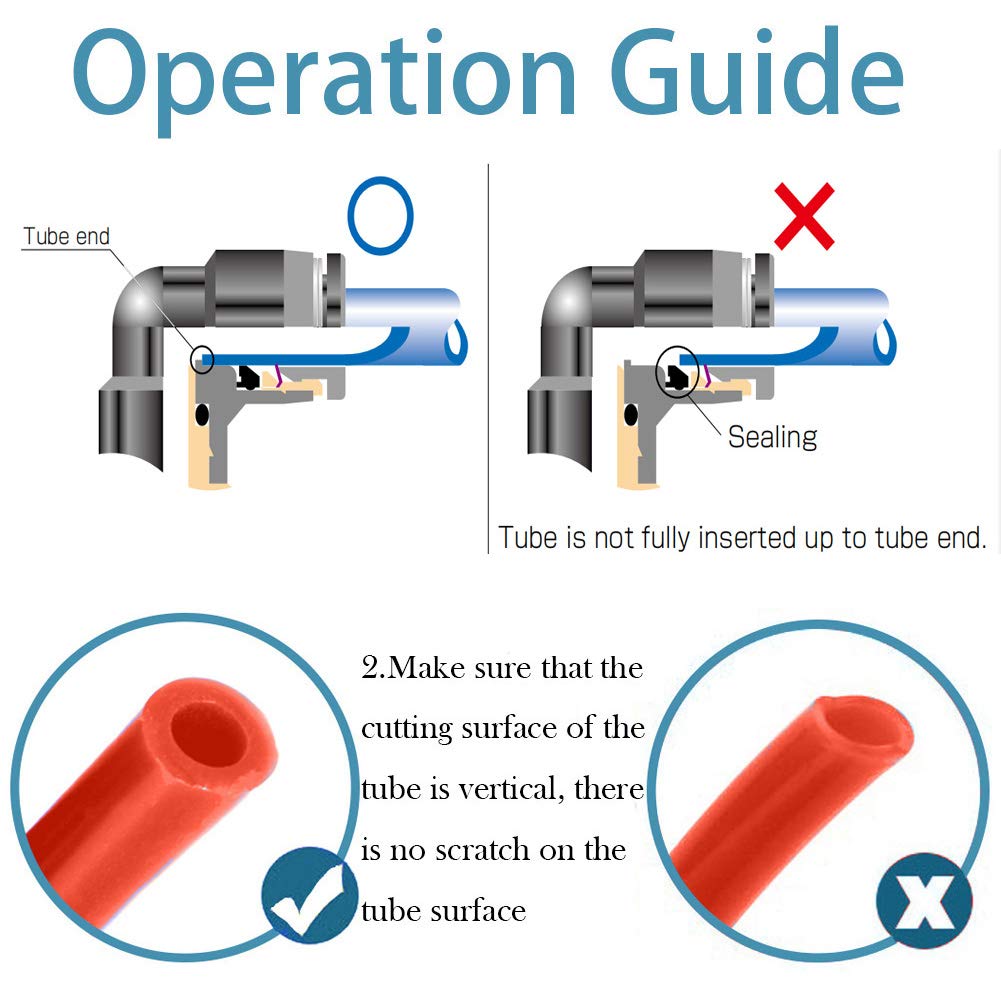

Notification Do Not Use Fittings with Media Other Than Air.Do Not Use the Product Where Weld Spatters Occur at Places Where There is Excessive Rotation or Vibration of the Fittings. Do Not Use the Product Where it is Directly Exposed to Fluids such as Cutting Oil, Lubricating Oil, and Coolant Oil. Do Not Use It in Places Where Metal Powder or Sand Dust is Mixed, such as Adhesion of Other Materials.Avoid Contact with Fire Sources. Precautions for Use Do Not Exceed 220Psi Pressure.Do Not Use Outside the Service Temperature Range (Working Temperature: -4～392°F).Make Sure That the Cutting Surface of the Tube is Vertical, There is No scratch on the Tube Surface or Deformations and the Tube is Not Oval.Never Apply Tube Joint with Additional External Load (Twisting ,Bending or Pulling).When Inserting the Tube, It Must Be Inserted into the Bottom.To Disassemble, Make Sure there is No Air Pressure Inside of the Tube and Push the Release Button against the Body and Remove Tube. 304 Stainless Steel Male Elbow Pneumatic Fittings Size: 3/8" Tube OD x 3/8" NPT(2Pcs) Pressure Range: 0~220PsiTemperature Range: -4～392°FFluid Type: Air, VacuumUse Tube: PU / PA / PE Product Feature Good Sealing Performance Stainless steel tube gripping claw makes the grip force stronger, not easy to trip or leak. External tightening with a flat wrench or socket wrench. Durable This fitting has 304 Stainless steel body and zinc alloy ferrule. Suitable for high temperature and humid environment, corrosion resistance and a long service life. 360°rotation After installation, the tube direction can be changed easily. Instructions for Use Push to Connect Pneumatic Fittings Kit Male Straight Straight Combo Female Straight Pneumatic Push to Connect Air Fittings Buying Options Buying Options Add to Cart Buying Options Buying Options Customer Reviews — — 4.6 out of 5 stars 80 — 4.3 out of 5 stars 17 Price — no data — no data $15.99$15.99 — no data — no data Quantity 20PCS 5PCS/10PCS 20PCS 10PCS 10PCS Material PBT Plastic Nickel Plated Brass PBT Plastic Nickel Plated Brass Nickel Plated Brass Temperature Range 32℉~140℉ 32℉~140℉ 32℉~140℉ 32℉~140℉ 32℉~140℉ Pressure Range 0~145Psi 0~145Psi 0~145Psi 0~145Psi 0~145Psi Sizes Available 1/4", 3/8" 1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT 1/4"，5/16"，3/8"，1/2" 1/8" NPT, 1/4" NPT, 3/8" NPT 1/8" NPT, 1/4" NPT
