ARB RD117 Air Locking Differential for 4x4 Off-Road Trucks & Jeeps - Heavy Duty Performance Upgrade for Rock Crawling & Trail Riding

Product Description

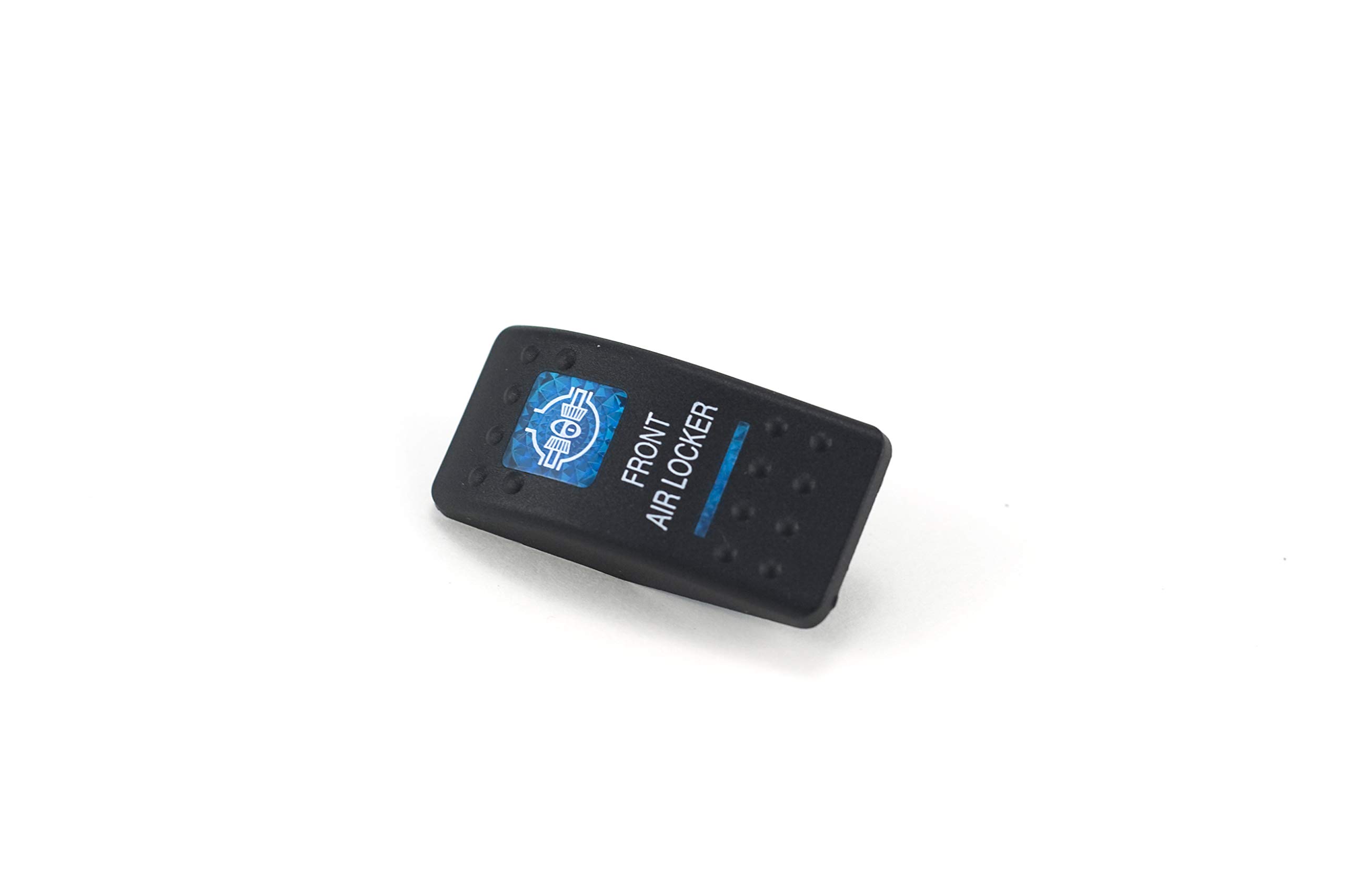

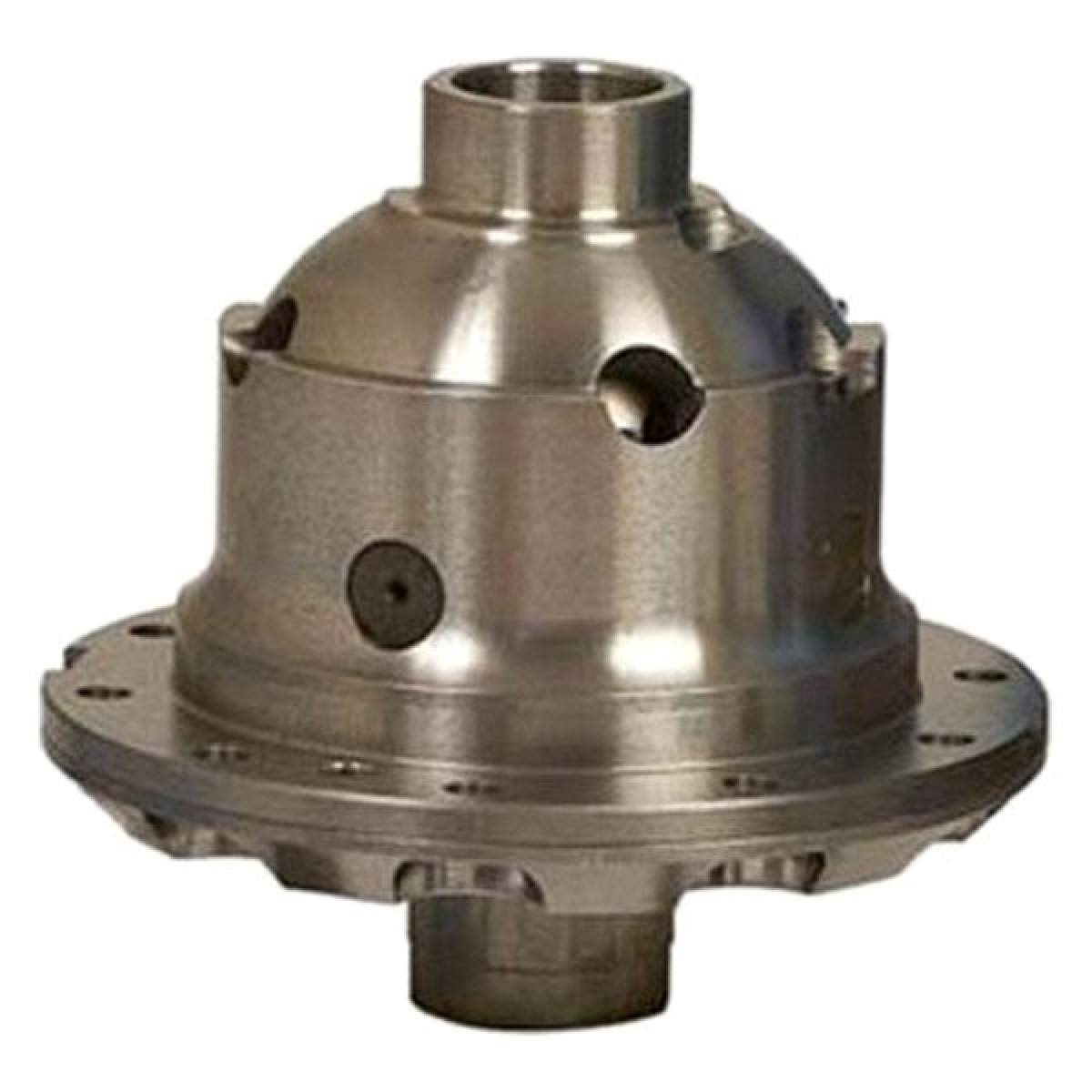

RD1117 AIR OPERATED LOCKING DIFFERENTIAL by ARB The ARB Air Locker is a replacement differential carrier that can either operate as a conventional differential, or lock both rear (or front) axle shafts together allowing maximum drive torque to be transmitted to both wheels. The locking function is controlled from the vehicle dashboard by the driver. Front axle Air Lockers can be locked when traversing slippery surfaces giving maximum traction, or unlocked on high traction surfaces to retain full control of the steering. As a safety feature, the front differential cannot be locked unless the rear differential has first been locked. The ARB Dana 44 air locker RD117 for your 30 spline axle for 3.73 & down gear ratios, can instantly lock differentials and allow you to tackle the toughest off-road terrain. The world's best traction aid, ARB Air Lockers keep you moving in all conditions. Air Lockers from ARB are currently available in over 100 configurations to suit a wide range of off-road and 4x4 vehicles from around the world. Because the Dana 44 ARB RD117 air locker is only engaged when needed, it can be installed in BOTH the front and rear axles, with separate switches independently controlling the RD117 air locker from within the off-road truck or vehicle. Since the Air Locker is pneumatically actuated, an onboard compressor, or other air supply, is REQUIRED. ARB recommend ARB Air Compressors (CKMTA12, CKMA12 or CKSA12).The air compressor is started with the air compressor switch, and a pressure switch maintains the air pressure in the reservoir between 585kPa [85psi] and 690kPa [100psi]. When the Air Locker switch is operated, the relevant pneumatic solenoid valve opens, allowing compressed air down the line to the differential. When the Air Locker switch is turned off, the solenoid valve closes the port from the compressor, and opens the exhaust port allowing the air in the differential to be exhausted. The return springs force the clutch gear back to its original position, disengaging the clutch gear from the splined side gear, freeing the internal gears so that they can once again provide the same normal differential action as the original open factory differential. RD117 AIR OPERATED LOCKING DIFFERENTIAL by ARB Air compressor is not included, but needed. ARB recommend (CKMTA12, CKMA12, CKSA12). RD117 DANA 44 ARB Air Locker 30 Spline (3.73 & Down) for JEEPs: JK (Not Rubicon) and other DANA 40 models ARB RD117 Air Locker Differential Spline 30 Ratio 3.73 & Down Air Locker Differential For Jeep JK. ARB Air Locker products are packaged with all necesary hardware to be ready to install. Before ordering ARB Air Lockers make sure to review the application chart to select correct Part Number ARB Differential Cover are available for some applications, they come in Black and Red, please review the application chart to select correct Part Number Inside the ARB Air Lockers The ARB Air Locker system is supplied as a complete kit which contains all of the parts necessary for proper installation, including industrial grade control switches, air lines and fittings ARB Air Locking Differential are made by joining a multiple pieces together, this products are not made to install without proper tools, on most cases should be installed by a professional. We recommend not to open the box until is ready to install, Boxes are supervised carefully to make sure there are not missing pieces. Air Lockers Installing Request a qualified differential technician to make the instalation for you, unless you have good skills for mechanics Understanding how it works! On some stores you can find a demo where you can understand the dynamics of how the air locker works Proper Installation After instalation the ARB Air Locker should do the work without any loss of air pressure. If you have a leak please consult with your mechanic, before assuming it is a defective item Look inside ARB Air Lockers are a masterpiece, this product shines from the inside out. gears are made carefully to work flawless. ARB Products ARB products are sold and serviced through authorized distributors worldwide. Our staff and distributors are 4x4 enthusiasts, and have a clear understanding of the demanding conditions our products are expected to work in.
