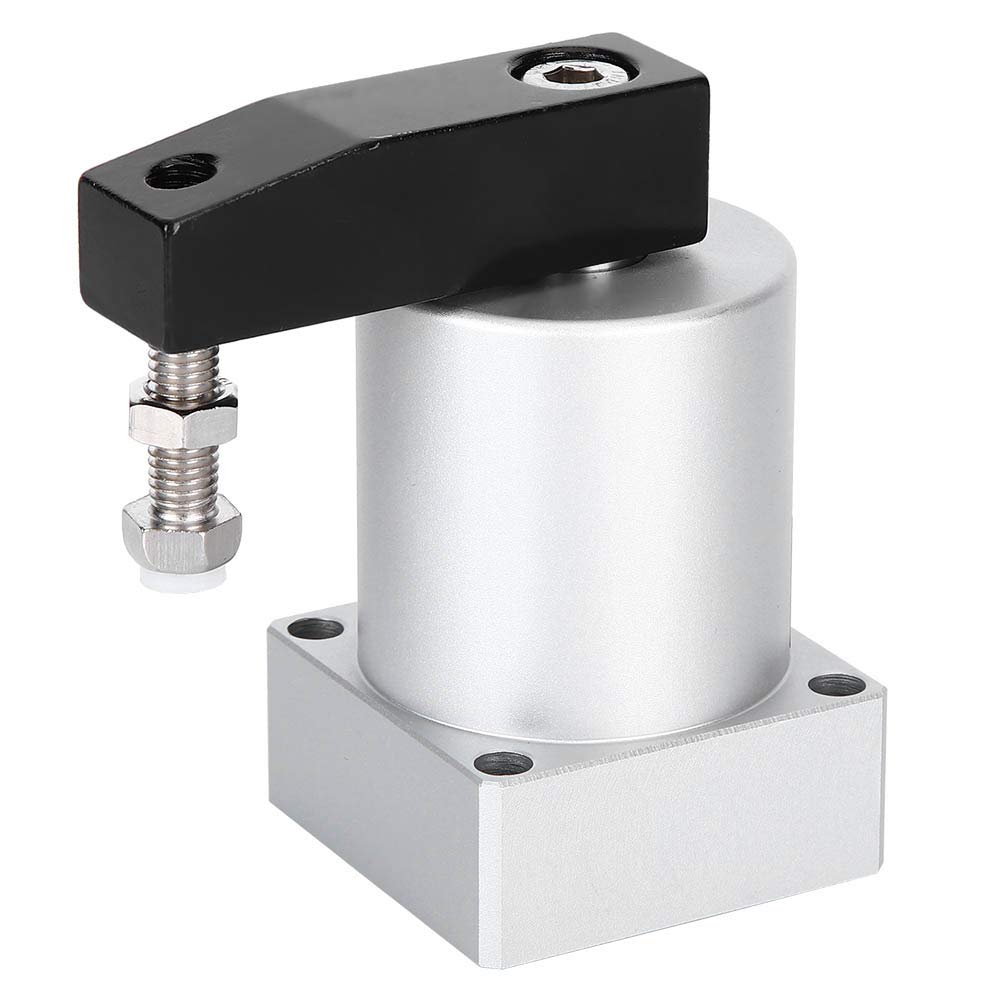

Walfront Double Acting Rotary Clamping Pneumatic Air Cylinder - High-Performance Pneumatic Accessory for Industrial Automation & Corner Pressing Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:26 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:74923228
Product Description
Feature:1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke, and the clamping operation cannot be performed within the rotation stroke;2. The clamping plane must be perpendicular to the cylinder. After the workpiece is clamped, please do not move the workpiece;3. Before piping the cylinder, the debris in the pipe must be removed to prevent debris from entering the cylinder;4. The medium used in the cylinder should be filtered by a filter part above 40μm before use;5. When the cylinder is removed and not used for a long time, pay attention to anti-rust on the surface, add anti-dust blocking caps to the intake and exhaust ports, and apply anti-rust oil to the end of the piston rod.Specification:Item Type: Air CylinderOptional Style: ACK40-90R, ACK40-90LInner Diameter (mm): Approx. 40mm / 1.6inPiston Rod Outer Diameter (mm): Approx. 16mm / 0.6inAction Type: Double actionWorking Medium: Air (filtered by a filter screen above 40μm)Operating Pressure Range: 0.15~1.0MPa (22~145psi)Guaranteed Pressure Resistance: 1.5MPa (215psi)Working Temperature (): -20~80Operating Speed Range (mm/s): 50~200Travel Tolerance Range: 1.0Rotation Angle Tolerance Range: ±1.5°Buffer Type: NoneTake Over Caliber: PT1/8Package List:1 x Air Cylinder
Product Features
Stable performance: Driven automatically by compressed air. With hand lever, can be controlled manually to deal with some special situations.
Great practicability: Widely used to control the flow of various types of fluids such as air, water, mud, liquid metals, etc.
Precise compatibility: Each thread is finely processed, no burrs, smooth and easy to install.
Package list: 1 x Air cylinder; Operating speed range (mm/s): 50~200; Travel tolerance range: 1.0; Rotation angle tolerance range: ±1.5°; Take over caliber: PT1/8; Guaranteed pressure resistance: 1.5MPa (215psi); Operating pressure range: 0.15~1.0MPa (22~145psi).
Sophisticated craftsmanship: The valve body contains a high concentricity seal ring, which is not easy to leak, and the rubber pad with lubricating oil reduces friction.
