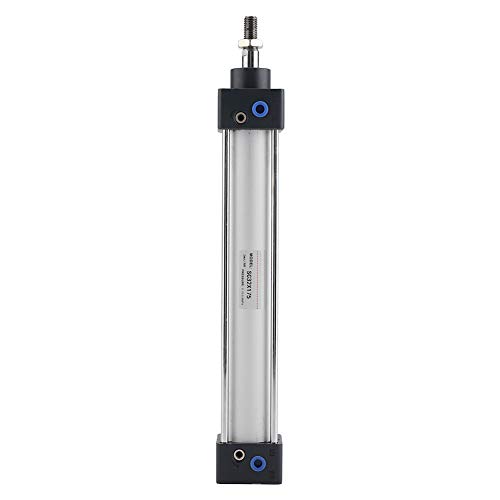

32mm Bore 175mm Stroke Pneumatic Air Cylinder - Dual Action with Screwed Piston Rod - Ideal for Industrial Automation, Machinery, and Pneumatic Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:78358900
Product Description
Description:This air cylinder is made of high quality aluminum alloy with durable performance. The stroke is 175mm and the inner diameter is 32mm, convenient to install, easy to use.Specifications:Material: Aluminum alloyOperation medium: AirBore: 32mm / 1.26inchStroke: 175mm / 6.89inchPressure: 0.1-1.0MPa (14-145psi)Enduring pressure: 1.5MPa(215Psi)Working temperature: -20~80℃Working speed range: 30-800mm/sAction type: Double actingBuffer stroke: 21mm / 0.83inchPort thread: PT1/8Size: Approx. 32 x 4.5cm / 12.60 x 1.77inchWeight: Approx. 864gPackage Included:1 x Standard Cylinder
Product Features
DURABLE MATERIAL: Adopt aluminum alloy cylinder, durable for use.
DOUBLE ACTION AIR CYLINDER: 32mm bore and 175mm stroke, double action and single rod.
STABLE AND SAFE: With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise.
TWO WAY SEALING STRUCTURE: The piston seal is adopted in two-way sealing structure with compact size and oil storage function.
SELF LUBRICATION BEARING GUIDE: The front cover adopts self-lubrication bearing guide, perfect lubrication and guiding performance.
